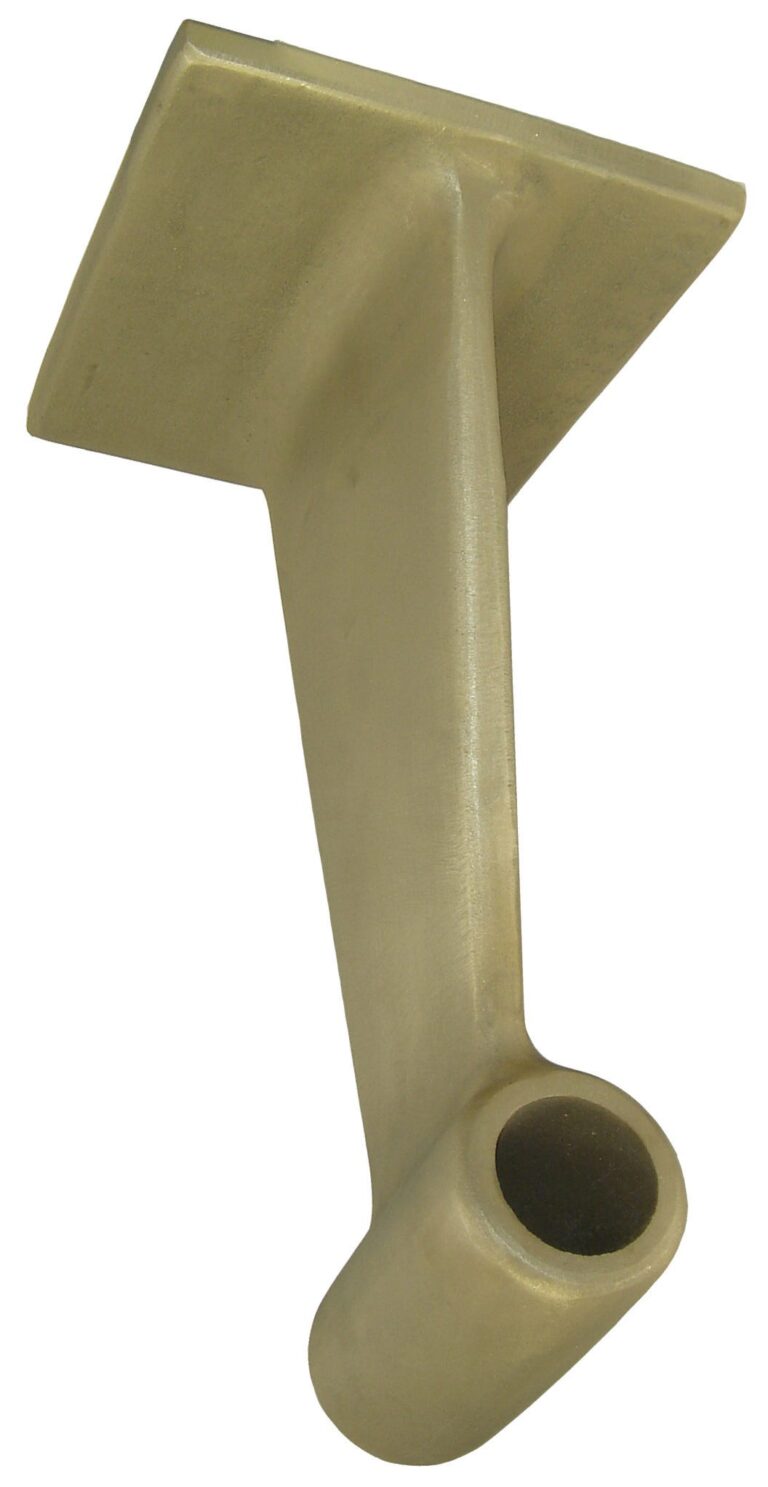

MS17P&SPOR – Bronze Main Struts – Port Side
MS17P&SPOR – Bronze Main Struts – Port Sidemain_strut_drawing
MS17P&SPOR

MS17P&SPOR – Bronze Main Struts – Port Side

Print Icon Print Download Icon Download PDF

Out of stock

Specification

  • Weight: 69 lbs
  • Aft Drop D In: 16-3/32''
  • Barrel Length G In: 9''
  • Base Angle H Degree: 16-1/2''
  • Base Length F In: 12''
  • Base Width E In: 7''
  • Bore Size A In: 2-5/8''
  • Cast No: To44Ft
  • Custom Castings: We Also Specialize In Custom Castings. If You Can'T Find The Strut You Are Looking For Please Find The Reference Drawings In The Back Of This Catalog Fill In The Blanks And Send It Back To Us By Emai
  • Forward Drop C In: 14-7/16''
  • Material: Bronze
  • Offset I In: 4-15/16''
  • Original Oem: Topaz
  • Package Type : Each
  • Shaft Angle B Degree: 10-1/2''
  • Units Per Package : 1

Specification Table

Weight69 lbs
Aft Drop D In16-3/32''
Barrel Length G In9''
Base Angle H Degree16-1/2''
Base Length F In12''
Base Width E In7''
Bore Size A In2-5/8''
Cast NoTo44Ft
Custom CastingsWe Also Specialize In Custom Castings. If You Can'T Find The Strut You Are Looking For Please Find The Reference Drawings In The Back Of This Catalog Fill In The Blanks And Send It Back To Us By Emai
Forward Drop C In14-7/16''
MaterialBronze
Offset I In4-15/16''
Original OemTopaz
Package Type Each
Shaft Angle B Degree10-1/2''
Units Per Package 1
