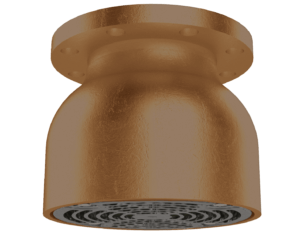

10-PM1-B-F-P – Inverted Vent Check (Half Float) 10″
10-PM1-B-F-P – Inverted Vent Check (Half Float) 10″inverted_vent_check_valves_half1inverted_vent_check_valves_half_float_drawing-600x416-3inverted_vent_check_valve_full_float_-_internal_view-1024x791
10-PM1-B-F-P

10-PM1-B-F-P – Inverted Vent Check (Half Float) 10″

Print Icon Print Download Icon Download PDF

Out of stock

Specification

  • Approximate Weight Lb: 127''
  • Closing Device Option: None (Standard)
  • Connection: Flanged
  • Construction: Four (4) Guide Ribs To Assure Proper Sealing Recessed Cap; Eliminates Catch Points
  • Dimension C In: 17''
  • Dimension D (in) : 13.25''
  • Dimension E In: 16''
  • Dimension F In: 4.25''
  • Dimension G In: 1''
  • Flame Insect Screen: Corrosion Resistant For Ignition Protection Easily Accessible For Maintenance
  • Float Option: Polyethylene
  • Flow Rate At 3 625 Psi Gpm: 2000''
  • Hardware: Stainless Steel
  • Material: Bronze B62
  • Max Inlet Air Speed Mpers: 9''
  • Minimum Order : 1
  • Nitrile Seal: Maximize Low Pressure Sealing Oil And Fuel Resistant
  • Package Type : Each
  • Pipe Size A In: 10 In''
  • Units Per Package : 1
  • Valve Cap: Eliminates need for a spacer ring and protective screen
  • Notes: Air Intake Tested With Polyethylene Float (Lightest Float) And The Water Pumped Through The Vent Check Valves For The Flow Rate.

Specification Table

Approximate Weight Lb127''
Closing Device OptionNone (Standard)
ConnectionFlanged
ConstructionFour (4) Guide Ribs To Assure Proper Sealing Recessed Cap; Eliminates Catch Points
Dimension C In17''
Dimension D (in) 13.25''
Dimension E In16''
Dimension F In4.25''
Dimension G In1''
Flame Insect ScreenCorrosion Resistant For Ignition Protection Easily Accessible For Maintenance
Float OptionPolyethylene
Flow Rate At 3 625 Psi Gpm2000''
HardwareStainless Steel
MaterialBronze B62
Max Inlet Air Speed Mpers9''
Minimum Order 1
Nitrile SealMaximize Low Pressure Sealing Oil And Fuel Resistant
Package Type Each
Pipe Size A In10 In''
Units Per Package 1
Valve CapEliminates need for a spacer ring and protective screen
NotesAir Intake Tested With Polyethylene Float (Lightest Float) And The Water Pumped Through The Vent Check Valves For The Flow Rate.
