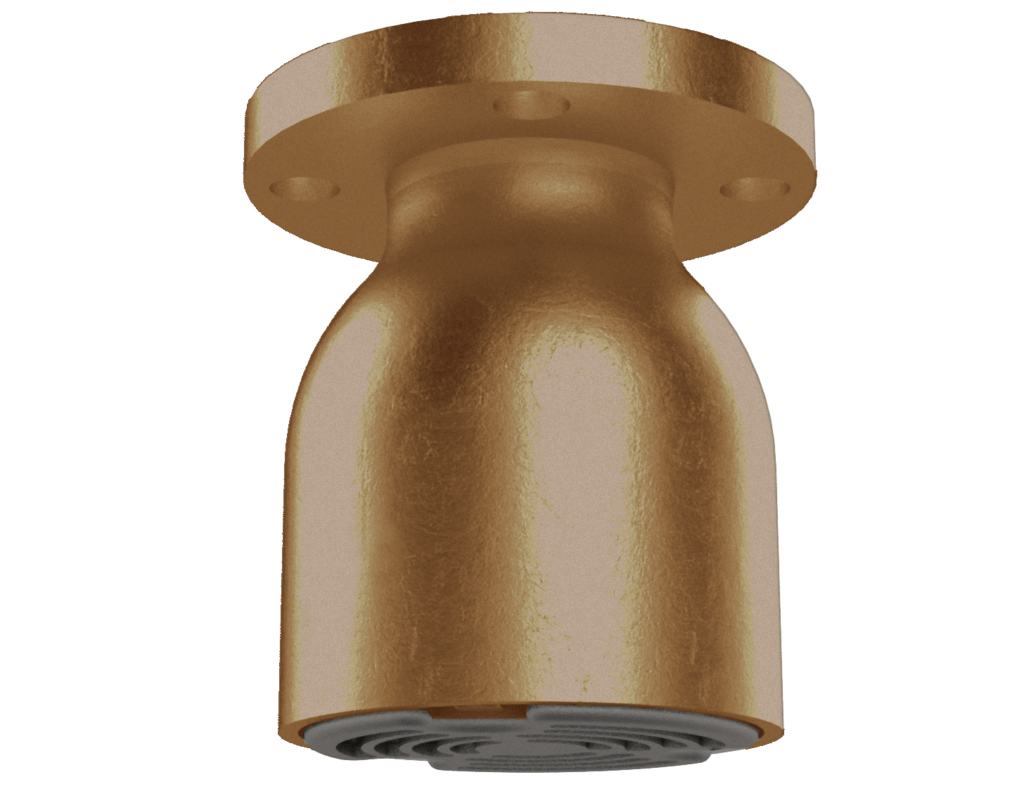

.1.5-PM1-B-F – Inverted Vent Check Valve PM1 Series 1.5″
.1.5-PM1-B-F – Inverted Vent Check Valve PM1 Series 1.5″inverted_vent_check_valves_full_float_drawinginverted_vent_check_valve_full_float_bronze_1-1024x791
1.5-PM1-B-F

.1.5-PM1-B-F – Inverted Vent Check Valve PM1 Series 1.5″

Print Icon Print Download Icon Download PDF

Out of stock

Specification

  • Approximate Weight Lb: 8
  • Closing Device Option: None (Standard)
  • Connection: Flanged
  • Construction: Four (4) guide ribs to assure proper sealing Recessed cap; eliminates catch points Investment casting allows for higher accuracy and repeat ability during the casting process

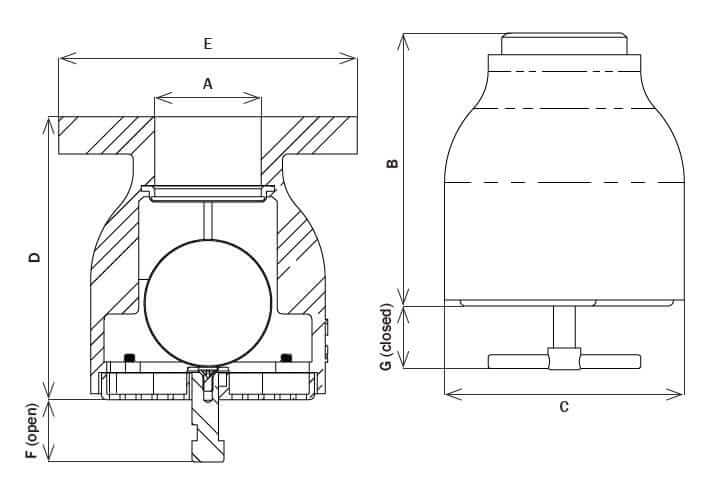

  • Dimension C In: 4''
  • Dimension D (in) : 4.75''
  • Dimension E In: 5''
  • Dimension F In: 1.5''
  • Dimension G In: 0.5''
  • Flame Insect Screen: Corrosion Resistant For Ignition Protection Easily Accessible For Maintenance
  • Float Option: Stainless Steel (Standard) Full Round Seamless Polished Stainless Steel Float Assures A Positive Seal
  • Flow Rate At 3 625 Psi Gpm: 56''
  • Hardware: Stainless Steel
  • Material: Bronze B62
  • Max Inlet Air Speed Mpers: 27''
  • Minimum Order : 1
  • Nitrile Seal: Maximize Low Pressure Sealing Oil And Fuel Resistant
  • Package Type : Each
  • Pipe Size A In: 1.5 In''
  • Standard Size A In: 1.5''
  • Units Per Package : 1
  • Valve Cap: Eliminates need for a spacer ring and protective screen
  • Notes: Air Intake Tested With Polyethylene Float (Lightest Float) And The Water Pumped Through The Vent Check Valves For The Flow Rate.

Specification Table

Approximate Weight Lb8
Closing Device OptionNone (Standard)
ConnectionFlanged
ConstructionFour (4) guide ribs to assure proper sealing Recessed cap; eliminates catch points Investment casting allows for higher accuracy and repeat ability during the casting process
Dimension C In4''
Dimension D (in) 4.75''
Dimension E In5''
Dimension F In1.5''
Dimension G In0.5''
Flame Insect ScreenCorrosion Resistant For Ignition Protection Easily Accessible For Maintenance
Float OptionStainless Steel (Standard) Full Round Seamless Polished Stainless Steel Float Assures A Positive Seal
Flow Rate At 3 625 Psi Gpm56''
HardwareStainless Steel
MaterialBronze B62
Max Inlet Air Speed Mpers27''
Minimum Order 1
Nitrile SealMaximize Low Pressure Sealing Oil And Fuel Resistant
Package Type Each
Pipe Size A In1.5 In''
Standard Size A In1.5''
Units Per Package 1
Valve CapEliminates need for a spacer ring and protective screen
NotesAir Intake Tested With Polyethylene Float (Lightest Float) And The Water Pumped Through The Vent Check Valves For The Flow Rate.
