1.5-ST-GS-SS – Sounding Tubes (ST) Series 1.5″

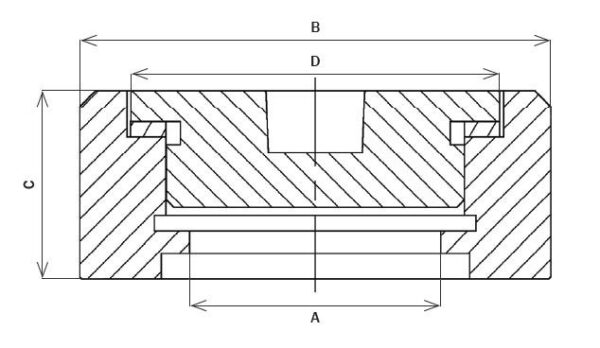

1.5-ST-GS-SS – Sounding Tubes (ST) Series 1.5″sounding_tube_drawing_2-600x348
1.5-ST-GS-SS

1.5-ST-GS-SS – Sounding Tubes (ST) Series 1.5″

Print Icon Print Download Icon Download PDF

Out of stock

Specification

  • Approximate Weight Lb: 4.5
  • Body Material : Galvanized Steel
  • Connection: Socket Weld
  • Dimension C In: 1.75
  • Material: Stainless Steel
  • Plug Material: 316 Stainless Steel
  • Plug Thread Size In: 2 To 11.5''

Download

Specification Table

Approximate Weight Lb4.5
Body Material Galvanized Steel
ConnectionSocket Weld
Dimension C In1.75
MaterialStainless Steel
Plug Material316 Stainless Steel
Plug Thread Size In2 To 11.5''
