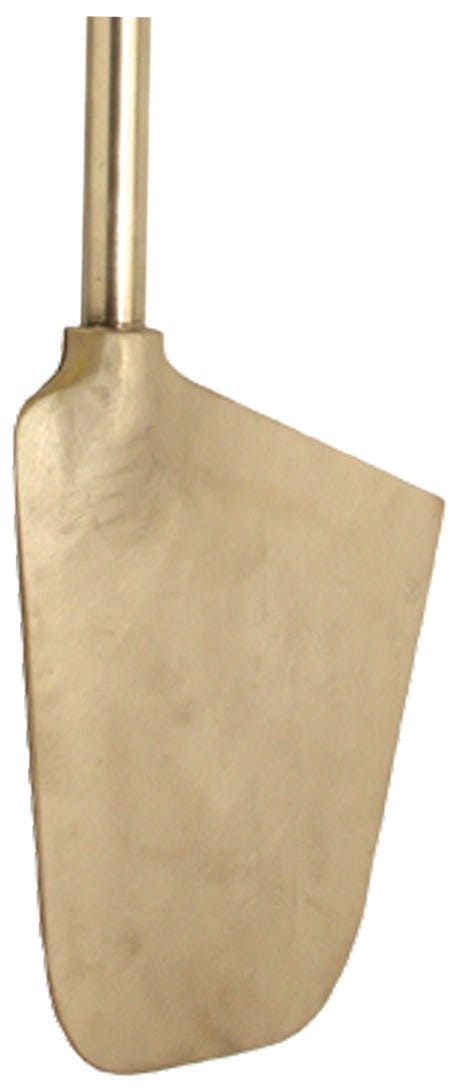

10R2HSSS1 – Bronze High Speed Rudders

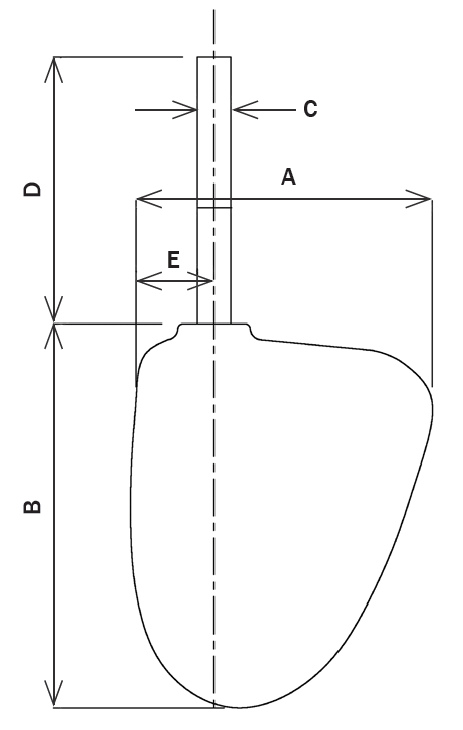

10R2HSSS1 – Bronze High Speed Ruddershigh_speed_rudder_drawing_1
10R2HSSS1

10R2HSSS1 – Bronze High Speed Rudders

Print Icon Print Download Icon Download PDF

Out of stock

Specification

  • Weight: 26 lbs
  • Blade Length B In: 16-1/4''
  • Blade Width A In: 11-7/8''
  • Custom Castings: We Also Specialize In Custom Castings. If You Can T Find The Rudder You Are Looking For Please Find The Reference Drawings In The Back Of This Catalog Fill In The Blanks And Send It Back To Us By Ema
  • Finish: Cast Finish
  • Forward Blade E In: 2-13/16''
  • Material: Bronze
  • Package Type : Each
  • Shaft Diameter C In: 1-1/4''
  • Shaft Length D In: 18''
  • Units Per Package : 1

Specification Table

Weight26 lbs
Blade Length B In16-1/4''
Blade Width A In11-7/8''
Custom CastingsWe Also Specialize In Custom Castings. If You Can T Find The Rudder You Are Looking For Please Find The Reference Drawings In The Back Of This Catalog Fill In The Blanks And Send It Back To Us By Ema
FinishCast Finish
Forward Blade E In2-13/16''
MaterialBronze
Package Type Each
Shaft Diameter C In1-1/4''
Shaft Length D In18''
Units Per Package 1
