10R3XSS1.1 – Standard Rudders
10R3XSS1.1 – Standard Rudders
10R3XSS1.1

10R3XSS1.1 – Standard Rudders

Print Icon Print Download Icon Download PDF

Out of stock

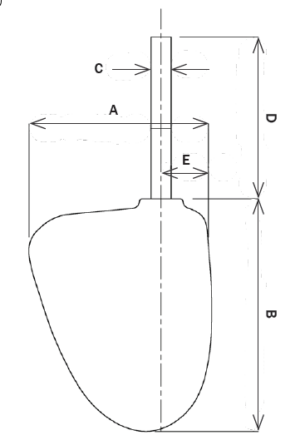

Specification

  • Weight: 15 lbs
  • Blade Length B In: 14-1/4''
  • Blade Width A In: 10-13/16''
  • Custom Castings: We Also Specialize In Custom Castings. If You Can T Find The Rudder You Are Looking For Please Find The Reference Drawings In The Back Of This Catalog Fill In The Blanks And Send It Back To Us By Ema
  • Finish: Cast Finish
  • Forward Blade E In: 2-5/8''
  • Material: Bronze
  • Package Type : Each
  • Shaft Diameter C In: 1-1/8''
  • Shaft Length D In: 16-1/4''
  • Units Per Package : 1

Specification Table

Weight15 lbs
Blade Length B In14-1/4''
Blade Width A In10-13/16''
Custom CastingsWe Also Specialize In Custom Castings. If You Can T Find The Rudder You Are Looking For Please Find The Reference Drawings In The Back Of This Catalog Fill In The Blanks And Send It Back To Us By Ema
FinishCast Finish
Forward Blade E In2-5/8''
MaterialBronze
Package Type Each
Shaft Diameter C In1-1/8''
Shaft Length D In16-1/4''
Units Per Package 1
