12-APH-A-F-R-C – Aluminum Air Pipe Head 12″
12-APH-A-F-R-C – Aluminum Air Pipe Head 12″aluminum_air_pipe_head_-_internal_viewaluminum_air_pipe_head_-_exploded-2air_pipe_head_aluminum_drawing-2
12-APH-A-F-R-C

12-APH-A-F-R-C – Aluminum Air Pipe Head 12″

Print Icon Print Download Icon Download PDF

Out of stock

Specification

  • Approximate Weight Lb: 151
  • Closing Device Option: Closing Device
  • Connection: Flanged (holes are slotted to accommodate ANSI B16.5 and DN PN10/16 flange mount dimensions)

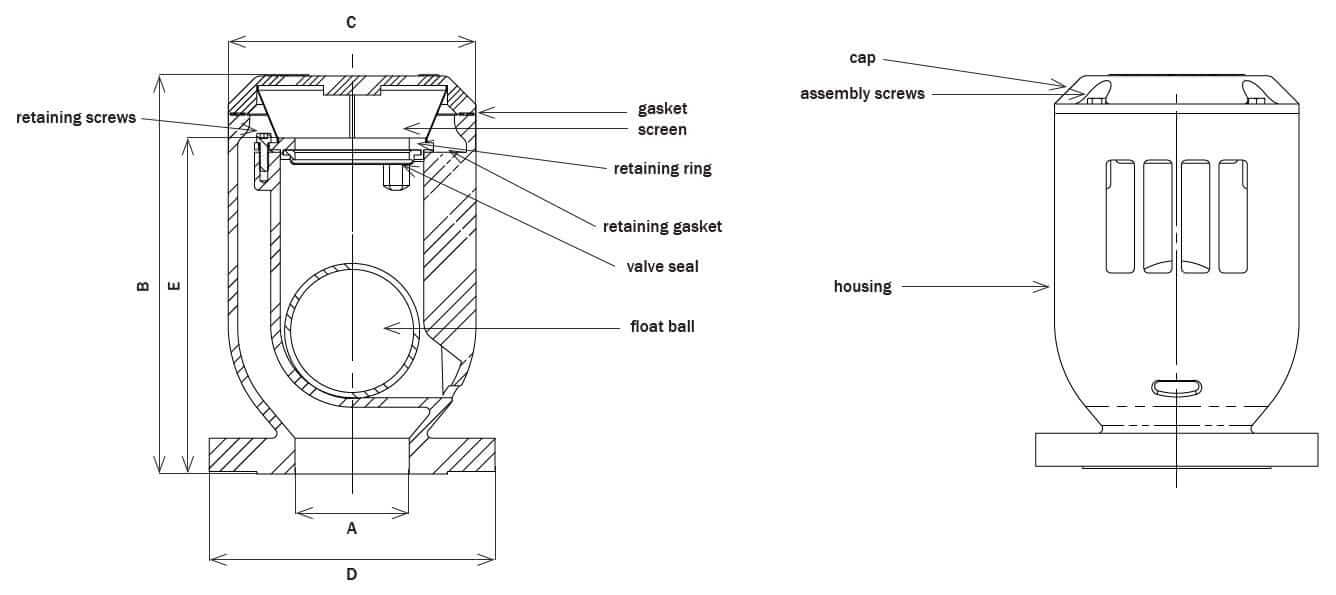

  • Dimension A In: 12''
  • Dimension B In: 31
  • Dimension C In: 22.13''
  • Dimension D (in) : 19
  • Dimension E In: 25.25''
  • Flame Insect Screen: 30 mesh Corrosion resistant for ignition protection Easily accessible for maintenance Design allows for closing option with screen in place
  • Float: High Density Polyethylene (Hdpe) Full Round
  • Hardware: Stainless Steel
  • Material: Aluminum
  • Minimum Order : 1
  • Nitrile Seal: Maximize Low Pressure Sealing Oil And Fuel Resistant
  • Package Type : Each
  • Units Per Package : 1
  • Notes: Air Intake Tested With Polyethylene Float (Lightest Float) And The Water Pumped Through The Vent Check Valves For The Flow Rate.

Specification Table

Approximate Weight Lb151
Closing Device OptionClosing Device
ConnectionFlanged (holes are slotted to accommodate ANSI B16.5 and DN PN10/16 flange mount dimensions)
Dimension A In12''
Dimension B In31
Dimension C In22.13''
Dimension D (in) 19
Dimension E In25.25''
Flame Insect Screen30 mesh Corrosion resistant for ignition protection Easily accessible for maintenance Design allows for closing option with screen in place
FloatHigh Density Polyethylene (Hdpe) Full Round
HardwareStainless Steel
MaterialAluminum
Minimum Order 1
Nitrile SealMaximize Low Pressure Sealing Oil And Fuel Resistant
Package Type Each
Units Per Package 1
NotesAir Intake Tested With Polyethylene Float (Lightest Float) And The Water Pumped Through The Vent Check Valves For The Flow Rate.
