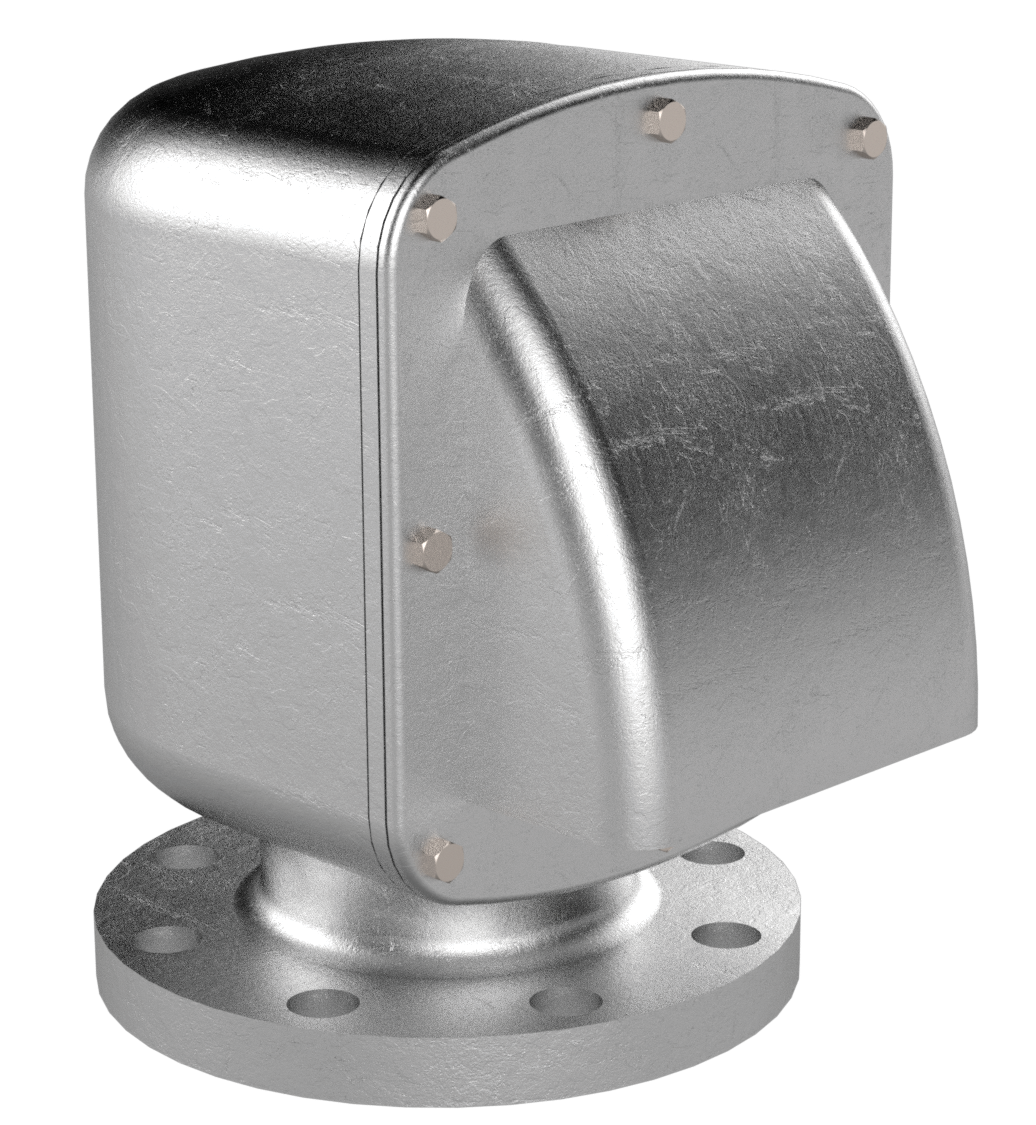

2-APH-GS-F-C – Cast Air Pipe Head 2″

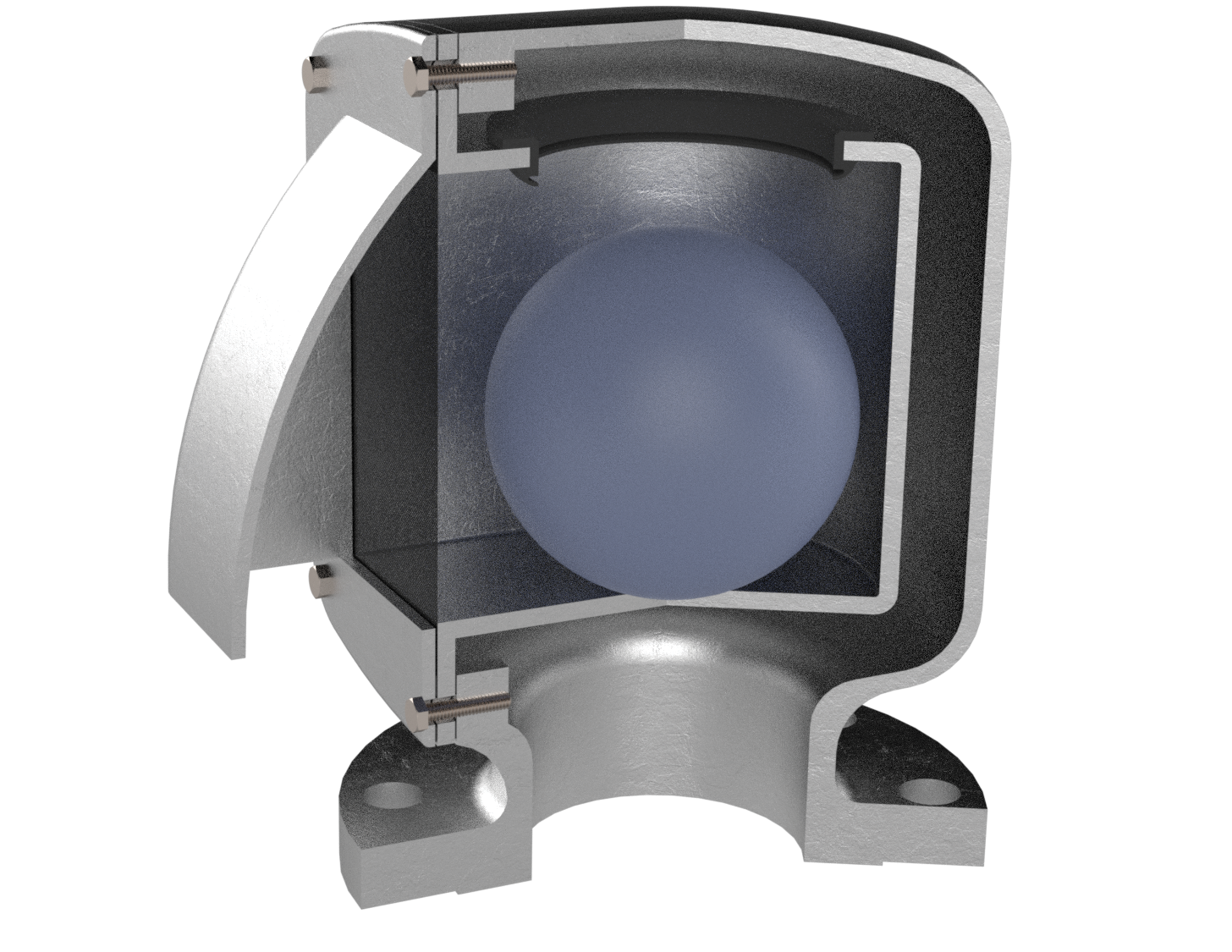

2-APH-GS-F-C – Cast Air Pipe Head 2″air_pipe_head_cast_-_internal_viewair_pipe_head_cast_fab_drawing
2-APH-GS-F-C

2-APH-GS-F-C – Cast Air Pipe Head 2″

Print Icon Print Download Icon Download PDF

Out of stock

Specification

  • Approximate Weight Lb: '24
  • Closing Device Option: None (Standard)
  • Connection: Flanged
  • Construction: Internal housing is removable for easy maintenance
  • Dimension C In: '6
  • Dimension D (in) : '7.5
  • Dimension E In: '7.5
  • Dimension F In: '4.5
  • Dimension G In: '3
  • Flame Insect Screen: Corrosion Resistant For Ignition Protection Easily Accessible For Maintenance
  • Float Option: Stainless Steel (Standard)
  • Flow Rate At 3 625 Psi Gpm: '150
  • Hardware: Stainless Steel
  • Material: Galvanized Steel
  • Max Inlet Air Speed Mpers: '36
  • Minimum Order : 1
  • Nitrile Seal: Maximize Low Pressure Sealing Oil And Fuel Resistant
  • Package Type : Each
  • Units Per Package : 1
  • Notes: Air Intake Tested With Polyethylene Float (Lightest Float) And The Water Pumped Through The Vent Check Valves For The Flow Rate.

Specification Table

Approximate Weight Lb'24
Closing Device OptionNone (Standard)
ConnectionFlanged
ConstructionInternal housing is removable for easy maintenance
Dimension C In'6
Dimension D (in) '7.5
Dimension E In'7.5
Dimension F In'4.5
Dimension G In'3
Flame Insect ScreenCorrosion Resistant For Ignition Protection Easily Accessible For Maintenance
Float OptionStainless Steel (Standard)
Flow Rate At 3 625 Psi Gpm'150
HardwareStainless Steel
MaterialGalvanized Steel
Max Inlet Air Speed Mpers'36
Minimum Order 1
Nitrile SealMaximize Low Pressure Sealing Oil And Fuel Resistant
Package Type Each
Units Per Package 1
NotesAir Intake Tested With Polyethylene Float (Lightest Float) And The Water Pumped Through The Vent Check Valves For The Flow Rate.
