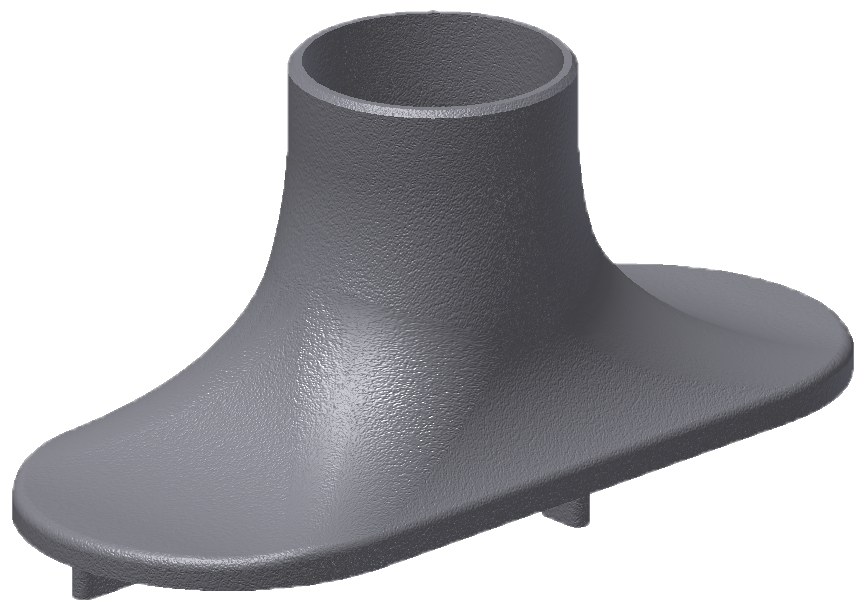

8-SBM-O-W – Suction Bellmouth 8″

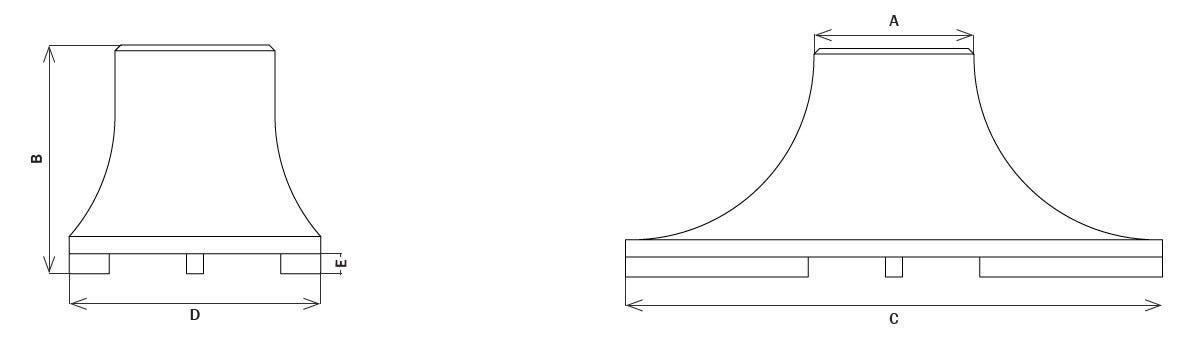

8-SBM-O-W – Suction Bellmouth 8″suction_bellmouth_drawing
8-SBM-O-W

8-SBM-O-W – Suction Bellmouth 8″

Print Icon Print Download Icon Download PDF

Out of stock

Specification

  • Approximate Weight Lb: 67
  • Connection: Butt Weld (beveled end) and flanged
  • Dimension C In: 30.75''
  • Dimension D (in) : 13.75''
  • Dimension E In: 1''
  • Material: Fully cast carbon steel 1025
  • Minimum Order : 1
  • Open Area Ratio: 1.5:1
  • Package Type : Each
  • Units Per Package : 1

Specification Table

Approximate Weight Lb67
ConnectionButt Weld (beveled end) and flanged
Dimension C In30.75''
Dimension D (in) 13.75''
Dimension E In1''
MaterialFully cast carbon steel 1025
Minimum Order 1
Open Area Ratio1.5:1
Package Type Each
Units Per Package 1
