10R25MSS1

10R25MSS1 – Bronze Special Rudders

Print Icon Print Download Icon Download PDF

Out of stock

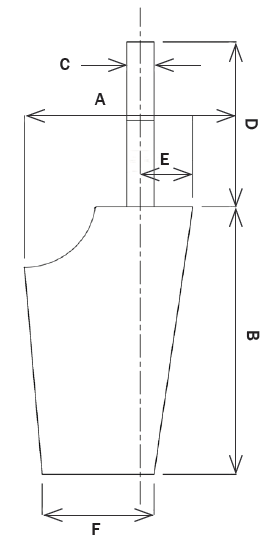

Specification Table

  • Weight: 16 lbs
  • Blade Bottom F In: 6-7/8''
  • Blade Length B In: 17''
  • Blade Top A In: 9-1/2''
  • Finish: Cast Finish
  • Forward Blade E In: 2-1/2''
  • Material: Bronze
  • Package Type : Each
  • Shaft Diameter C In: 1-1/4''
  • Shaft Length D In: 16''
  • Units Per Package : 1

Specification Table

Weight16 lbs
Blade Bottom F In6-7/8''
Blade Length B In17''
Blade Top A In9-1/2''
FinishCast Finish
Forward Blade E In2-1/2''
MaterialBronze
Package Type Each
Shaft Diameter C In1-1/4''
Shaft Length D In16''
Units Per Package 1
