00ISB100

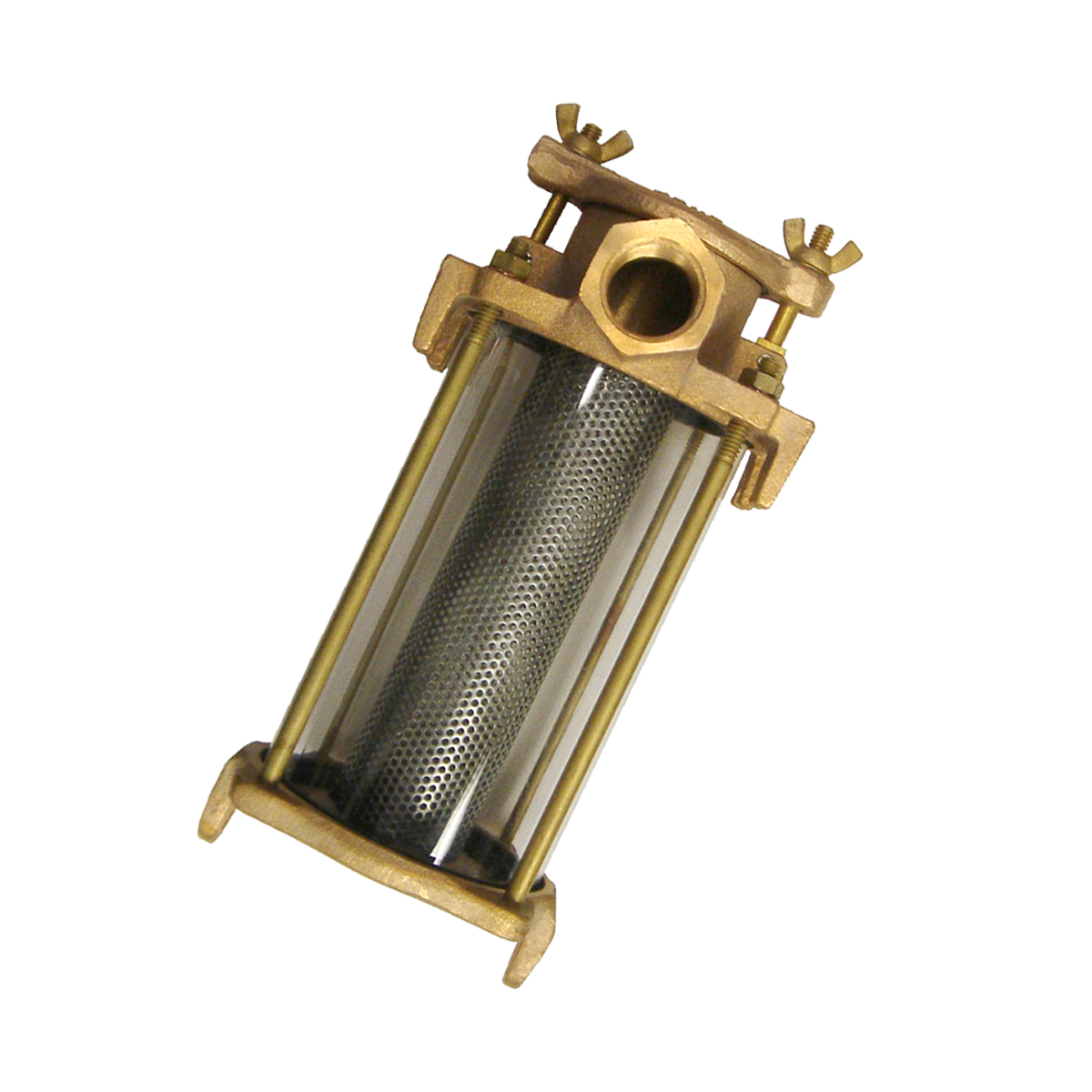

00ISB100 – Bronze Basket Strainers

Print Icon Print Download Icon Download PDF
$906.07

Specification Table

  • Weight: 7.3 lbs
  • Basket Material: Stainless Steel

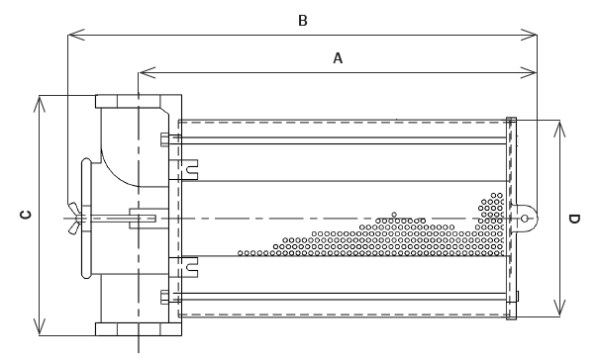

  • Center To End A In: 7-7/8''

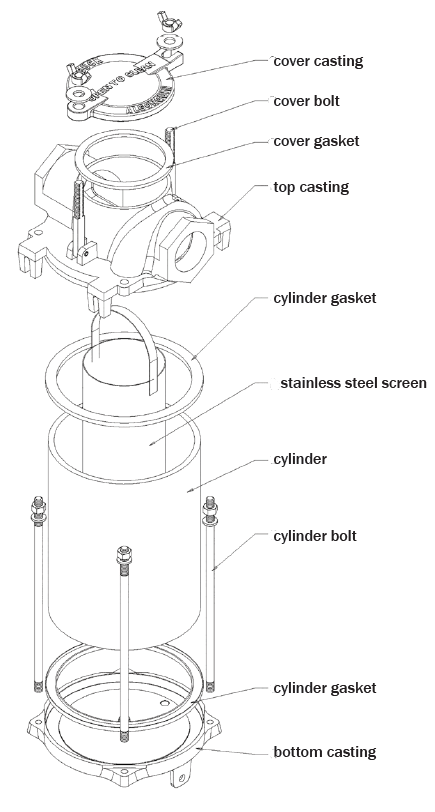

  • Component: 00Isbwsco100 Cover Castings 00Isbwstc100 Top Castings 00Isbwsbc100 Bottom Castings D0Isbwsc100 Cylinders 00Isbwscbolt100 Cylinder Bolts 00Isbwscb100 Cover Bolts C''
  • Cylinder Material: Polycarbonate
  • Diameter Of Cylinder D In: 4-1/4''
  • Material: Bronze
  • Overall Length B In: 10-1/4''
  • Overall Width C In: 5-1/2''
  • Package Type : Each
  • Thread Size Npt In: 1''
  • Units Per Package : 1
  • Sub Note: Failure to properly winterize may cause damage to strainer.

Specification Table

Weight7.3 lbs
Basket MaterialStainless Steel
Center To End A In7-7/8''
Component00Isbwsco100 Cover Castings 00Isbwstc100 Top Castings 00Isbwsbc100 Bottom Castings D0Isbwsc100 Cylinders 00Isbwscbolt100 Cylinder Bolts 00Isbwscb100 Cover Bolts C''
Cylinder MaterialPolycarbonate
Diameter Of Cylinder D In4-1/4''
MaterialBronze
Overall Length B In10-1/4''
Overall Width C In5-1/2''
Package Type Each
Thread Size Npt In1''
Units Per Package 1
Sub NoteFailure to properly winterize may cause damage to strainer.
