1.5-DD

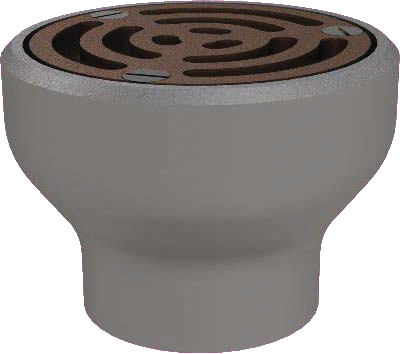

1.5-DD – Standard Deck Drain (DD) Series 1.5″

Print Icon Print Download Icon Download PDF

Out of stock

Specification Table

  • Approximate Weight Lb: 4
  • Connection: Choose One:S – Socket WeldT – ThreadedW – Butt Weld

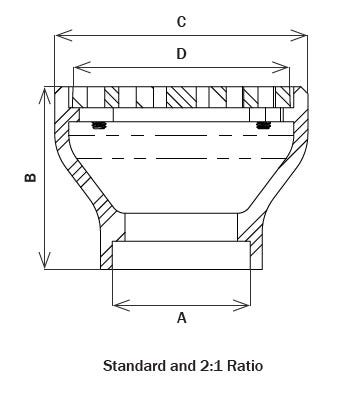

  • Dimension C In: 4.5''
  • Dimension D (in) : 3.88''
  • Material: Choose One:A – AluminumGS – Galvanized SteelSS – 316 Stainless Steel
  • Minimum Order : 1
  • Open Area Ratio: 2.5:1
  • Package Type : Each
  • Pipe Size A In: 1.5 In''
  • Strainer Material: Choose One:A – Aluminum 535B – Bronze B62SS – 316 Stainless Steel
  • Units Per Package : 1

Specification Table

Approximate Weight Lb4
ConnectionChoose One:S – Socket WeldT – ThreadedW – Butt Weld
Dimension C In4.5''
Dimension D (in) 3.88''
MaterialChoose One:A – AluminumGS – Galvanized SteelSS – 316 Stainless Steel
Minimum Order 1
Open Area Ratio2.5:1
Package Type Each
Pipe Size A In1.5 In''
Strainer MaterialChoose One:A – Aluminum 535B – Bronze B62SS – 316 Stainless Steel
Units Per Package 1
WARNING: This product contains lead, a chemical known to the State of California to cause cancer and birth defects or other reproductive harm.
