SHAFT DIA 2-3/4

SHAFT DIA 2-3/4 – Marine Propeller Shafts

Print Icon Print Download Icon Download PDF

Out of stock

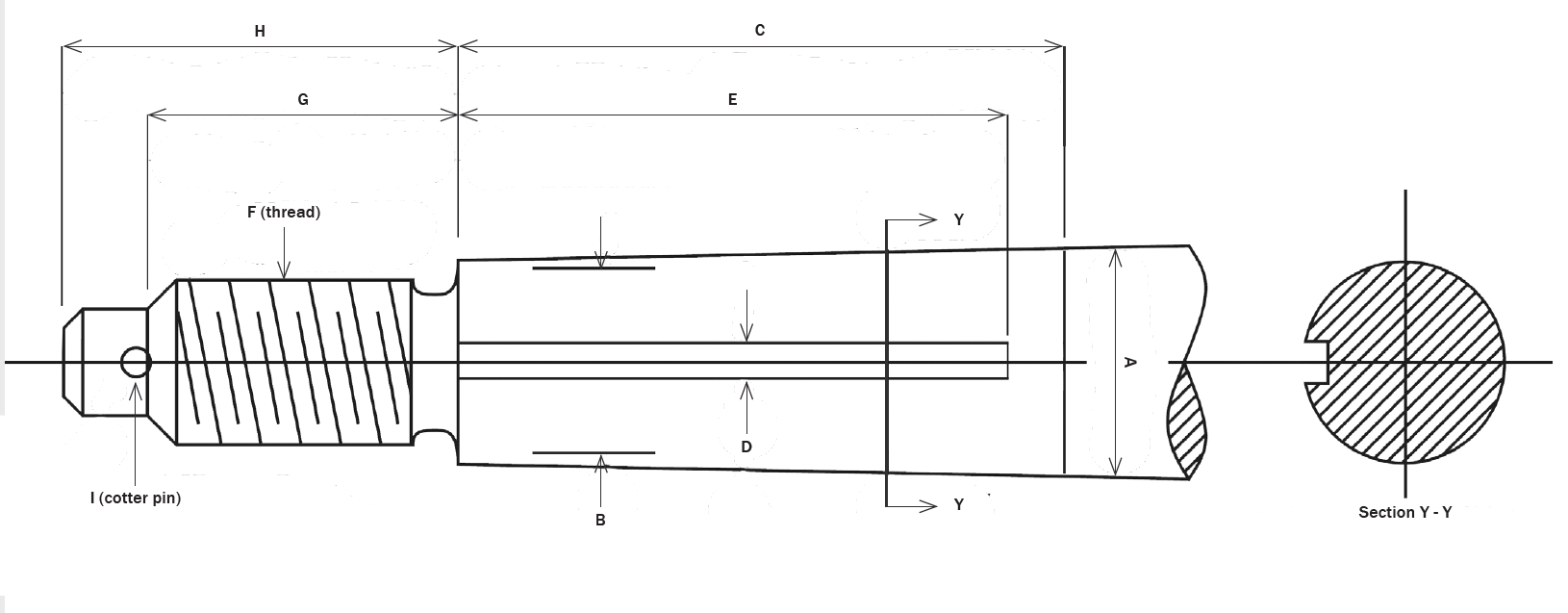

Specification Table

  • Cotter Pin Diameter I In: 1/4''
  • Cotter Pin Length I In: 2-1/2''
  • Keyway Length E In: 6-21/32''
  • Keyway Width D In: 5/8''
  • Package Type : Each
  • Shaft Diameter A In: 2-3/4''
  • Small End Diameter B In: 2.258''
  • Taper Length C In: 7-7/8''
  • Thread Size F: 2In – 4-1/2''
  • Units Per Package : 1
  • Sub Note: Small End Diameter (B): Tolerances Are ± 0.001"Taper Length (C):Taper Angle: 3/4" Per Foot

Specification Table

Cotter Pin Diameter I In1/4''
Cotter Pin Length I In2-1/2''
Keyway Length E In6-21/32''
Keyway Width D In5/8''
Package Type Each
Shaft Diameter A In2-3/4''
Small End Diameter B In2.258''
Taper Length C In7-7/8''
Thread Size F2In – 4-1/2''
Units Per Package 1
Sub NoteSmall End Diameter (B): Tolerances Are ± 0.001"Taper Length (C):Taper Angle: 3/4" Per Foot
WARNING: This product contains lead, a chemical known to the State of California to cause cancer and birth defects or other reproductive harm.
